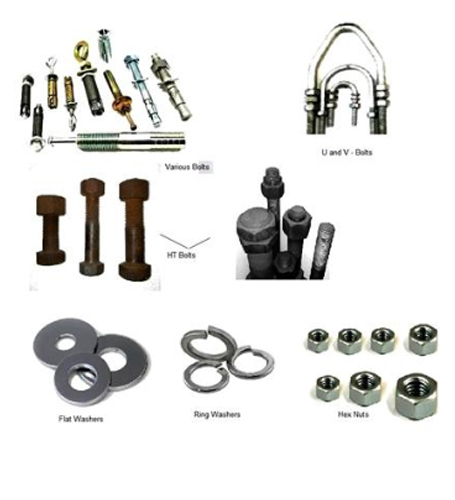

❖ Items – Anchor Bolts, Transmission Line Bolts, U – Bolts, VBars
❖ Steel parts of Bolts conform to Forged Steel (IS 2004:1991) or
Mild Steel (IS: 1570)
❖ Hot Dipped Galvanized as per IS: 2629 &IS: 2633.
❖ High Strength Bolts are manufactured as per IS-4000-1992
❖ HEX HEAD BOLTS (M1.6 to M64) as per IS - 1364 (Part-1) 1992
&ISO: 4014.
❖ HEX HEAD SCREWS (M1.6 to M64) as per IS - 1364 (Part-2)
1992 &ISO: 4017.
❖ HEX NUTS - (M1.6 to M64) as per IS - 1364 (Part-3) 1992 & ISO:
4032(DIN).
❖ HEX THIN (LOCK) NUTS - CHAMFERED (M1.6 to M64) as per
IS: 1364 (PART-4)1992 & ISO: 4035 – 1986.
❖ HEX THIN NUTS (UNCHAMFERED) (M1.6To M10) as per IS:
1364 (PART-5) 1992 &ISO: 4036 – 1979.

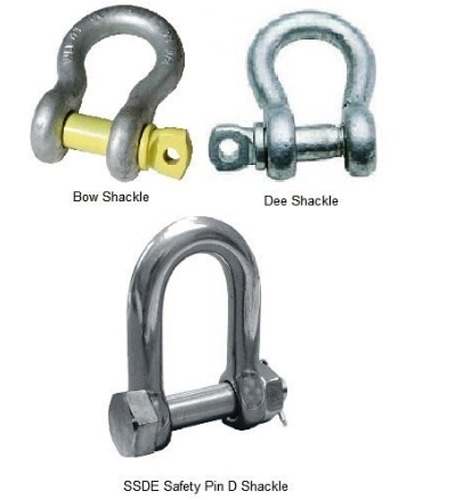

Shackles
❖ Solid forged without any weld in line with IS 6132 (Part 1):1971
regarding terminology, workmanship and finish and inspection and
examination
❖ The material of Grade 63 shackles contains steel conforming to
following designations,
➢ 40Cr
4
/ 40Cr
4
Mo
3
/ 35Ni
5
Cr
conforming to IS 4367:1991
Alloy steel forgings for general industrial use.
➢ 13Ni
13
Cr
3
or 15Ni
16
Cr
5
2
conforming to IS 4367:1991 for use
in high temperature conditions.
❖ Hardness of the body and pin after heat treatment between 248302
BHN
when
tested
in
accordance
with
IS
1500:2005Method
for
Brinell
hardness
test
for
steel.
❖ The screw threads are conforming to IS 4218 (Part 1 to 6).
❖ Inspection, test and examination are carried out in accordance with
IS6132 (Part 1):1971.

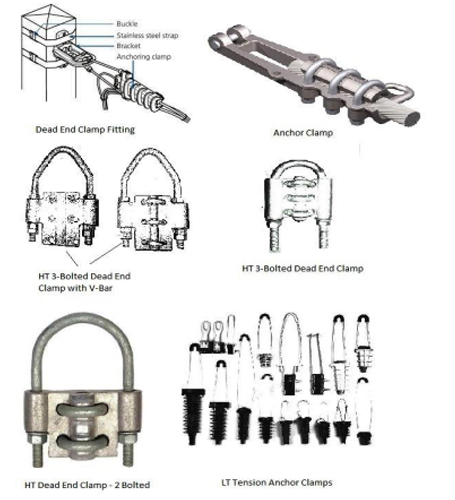

Dead End Clamp
LT
❖ As per NFC-33-041_1998 Standard Applicable.
HT
❖ Applicable Standard - In line with IPDS (DDGJJ) REC
Drawing Standard
❖ Range of Conductor Size - 70-210 Sq. mm. for Bare
Messenger
❖ Type of Design - Bolted Type
❖ Type of Metal Grade - Aluminum Alloy (LM-6) as per IS : 617,
Galvanized MS as per IS : 1570
❖ Type of Hot Dip Galvanizing - As per IS : 2629 & IS : 2633
❖ Minimum Weight in Kg - 0.975
.
❖ Maximum Allowable Load in KN - > 36KN

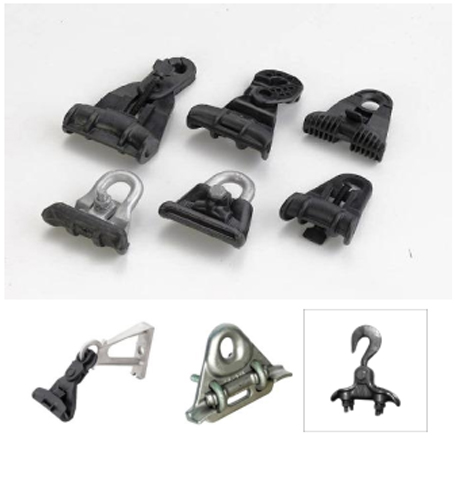

Suspension Clamp
LT
❖ As per NFC-33-040_1998 Standard Applicable.
HT
❖ Applicable Standard - In line with IPDS (DDGJJ) REC
Drawing Standard
❖ Range of Conductor Size - 70-210 Sq. mm. for Bare
Messenger
❖ Type of Design - Bolted Type
❖ Type of Metal Grade - Aluminum Alloy (LM-6) as per IS : 617,
Galvanized MS as per IS : 1570
❖ Type of Hot Dip Galvanizing - As per IS : 2629 & IS : 2633
❖ Minimum Weight in Kg - 0.458
.
❖ Maximum Allowable Load in KN - > 20KN

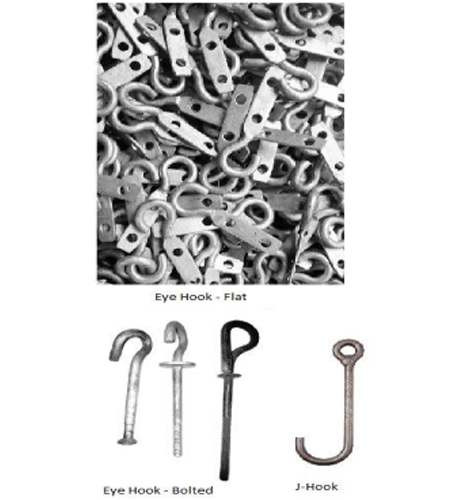

Hooks
Flat Eye Hook, J – Hook, Bolted Eye Hook, etc.
❖ Material Type: Mild Steel / Carbon Steel
❖ Applicable Standard: In line with IPDS (DDGJJ) REC
Drawing Standard
❖ Hardness: 150 – 240 BHN (For 9 – 20 KN)
❖ Process Description: Duly Forged, Bended, Drilled,
Grinded, Hardened and Galvanized.
❖ Design: Flat / Bolted
❖ Galvanizing: Hot Dip Galvanizing as per IS: 2629 & IS:
2633
.
❖ Coating Thickness: Not Less Than 85 Micron

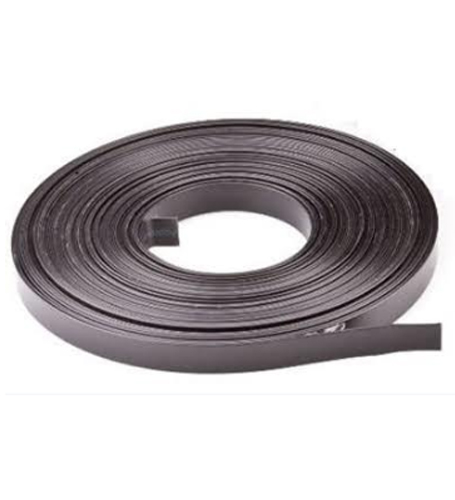

Steel Strap&
Bracket
❖ Type of Material: Stainless Steel – J 202 (Jindal Make)
❖ Chemical Composition: Cr=17-19%, Ni=4-6%, Mn=7.510%,
Si<1%,
P<0.06%,
C<0.15%,
S<0.03%.
